- 編號：87971673
- 頻率：40MHz
- 尺寸：3.2×2.5mm

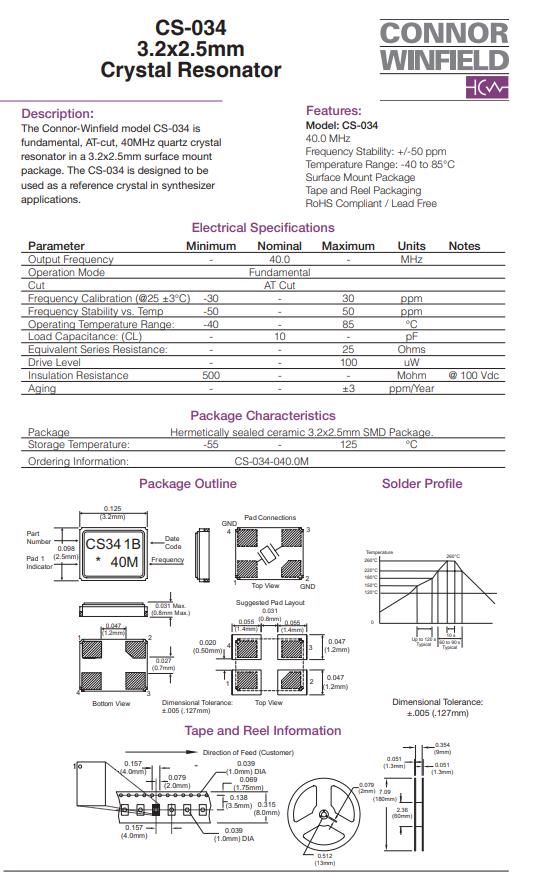

CS-034-040.0M,6G無線網絡晶振,進口石英貼片晶振
ConnorWinfield晶振,CS-034E無源晶振,CS-034-040.0M晶振,進口石英貼片晶振,3225mm晶振,頻率40MHz,工作溫度-40~85°C,負載10pF,頻率穩定性50ppm,小體積晶振,高品質晶振,6G無線網絡晶振,頻率合成器晶振,智能家居應用晶振...
.jpg)
CS-034-040.0M,6G無線網絡晶振,進口石英貼片晶振, ConnorWinfield晶振,CS-034E無源晶振,CS-034-040.0M晶振,進口石英貼片晶振,3225mm晶振,頻率40MHz,工作溫度-40~85°C,負載10pF,頻率穩定性50ppm,小體積晶振,高品質晶振,6G無線網絡晶振,頻率合成器晶振,智能家居應用晶振,物聯網晶振,筆記本電腦晶振.
CS-034-040.0M,6G無線網絡晶振,進口石英貼片晶振特點：
●頻率：40MHz
●工作溫度-40ºC ~ +85ºC
●頻率穩定性：±50ppm
●表面貼裝封裝
●膠帶和卷軸包裝
●無鉛,符合RoHS標準
.gif)
CS-034-040.0M,6G無線網絡晶振,進口石英貼片晶振參數表
| 項目 | 規格說明 |
| 額定頻率 | 40MHz |
| 頻率公差 @ 25ºC | ±30 ppm |
| 頻率穩定性與溫度變化的關系 | ±50 ppm |
| 工作溫度 | -40~85°C |
| 操作模式 | Fundamenta |
| 切割 | AT Cut |
| 老化 | ±3ppm/Year |
| 負載:(CL） |
10pF
|
| 等效串聯電阻@ 25 °C | 25Ohms max. |
| 驅動電平 | 100 uW |
| 絕緣電阻 | 500 Mohm |
| 儲存溫度 |
-55~125°C
|
.gif)
CS-034-040.0M,6G無線網絡晶振,進口石英貼片晶振尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | ESR電阻 | 工作溫度 |
| CS-018-114.285M | Connor-Winfield | CS-018 | 114.285MHz | ±100ppm | ±100ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-018-114.285M | Connor-Winfield | CS-018 | 114.285MHz | ±100ppm | ±100ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-018-114.285M | Connor-Winfield | CS-018 | 114.285MHz | ±100ppm | ±100ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-023-114.285M | Connor-Winfield | CS-023 | 114.285MHz | ±20ppm | ±20ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-023-114.285M | Connor-Winfield | CS-023 | 114.285MHz | ±20ppm | ±20ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-023-114.285M | Connor-Winfield | CS-023 | 114.285MHz | ±20ppm | ±20ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| XL-1C-010.0M | Connor-Winfield | XL-1C | 10MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-010.0M | Connor-Winfield | XL-1C | 10MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-010.0M | Connor-Winfield | XL-1C | 10MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-012.0M | Connor-Winfield | XL-1C | 12MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-012.0M | Connor-Winfield | XL-1C | 12MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-012.0M | Connor-Winfield | XL-1C | 12MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-020.0M | Connor-Winfield | XL-1C | 20MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-020.0M | Connor-Winfield | XL-1C | 20MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-020.0M | Connor-Winfield | XL-1C | 20MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-016.0M | Connor-Winfield | XL-1C | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-016.0M | Connor-Winfield | XL-1C | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-016.0M | Connor-Winfield | XL-1C | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-012.0M | Connor-Winfield | XM-1 | 12MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-012.0M | Connor-Winfield | XM-1 | 12MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-012.0M | Connor-Winfield | XM-1 | 12MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-016.0M | Connor-Winfield | XM-1 | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-016.0M | Connor-Winfield | XM-1 | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-016.0M | Connor-Winfield | XM-1 | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-010.0M | Connor-Winfield | XM-1 | 10MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-010.0M | Connor-Winfield | XM-1 | 10MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-010.0M | Connor-Winfield | XM-1 | 10MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| CS-034-040.0M | Connor-Winfield | CS-034 | 40MHz | ±50ppm | ±30ppm | 10pF | 25 Ohm | -40°C ~ 85°C |
| CS-034-040.0M | Connor-Winfield | CS-034 | 40MHz | ±50ppm | ±30ppm | 10pF | 25 Ohm | -40°C ~ 85°C |
| CS-034-040.0M | Connor-Winfield | CS-034 | 40MHz | ±50ppm | ±30ppm | 10pF | 25 Ohm | -40°C ~ 85°C |
| CS-043-048.0M | Connor-Winfield | CS-043 | 48MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-043-048.0M | Connor-Winfield | CS-043 | 48MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-043-048.0M | Connor-Winfield | CS-043 | 48MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-044-054.0M | Connor-Winfield | CS-044 | 54MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-044-054.0M | Connor-Winfield | CS-044 | 54MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-044-054.0M | Connor-Winfield | CS-044 | 54MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| XL-1C-018.432M | Connor-Winfield | XL-1C | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-018.432M | Connor-Winfield | XL-1C | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-018.432M | Connor-Winfield | XL-1C | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-018.432M | Connor-Winfield | XM-1 | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-018.432M | Connor-Winfield | XM-1 | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-018.432M | Connor-Winfield | XM-1 | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| CS-018-114.285MHZ | Connor-Winfield | CS-018 | 114.285MHz | ±100ppm | ±100ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
