- 編號：85667765
- 頻率：160MHz
- 尺寸：7.0×5.0mm
EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振
日本愛普生晶振,進口晶體振蕩器,LV-PECL差分晶振,EG-2121CA有源晶振,EG-2121CA160.000000MHzPGSA晶振,頻率160MHz,電壓2.5V,工作溫度-20~70°C,頻率容差50ppm,尺寸7050mm,六腳石英SMD晶振,智能手機晶振,藍牙模塊晶振,可...
.jpg)
EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振 ,日本愛普生晶振,進口晶體振蕩器,LV-PECL差分晶振,EG-2121CA有源晶振,EG-2121CA160.000000MHzPGSA晶振,頻率160MHz,電壓2.5V,工作溫度-20~70°C,頻率容差50ppm,尺寸7050mm,六腳石英SMD晶振,智能手機晶振,藍牙模塊晶振,可視智能家居晶振,網絡終端晶振,智能家用電器晶振.
.gif)

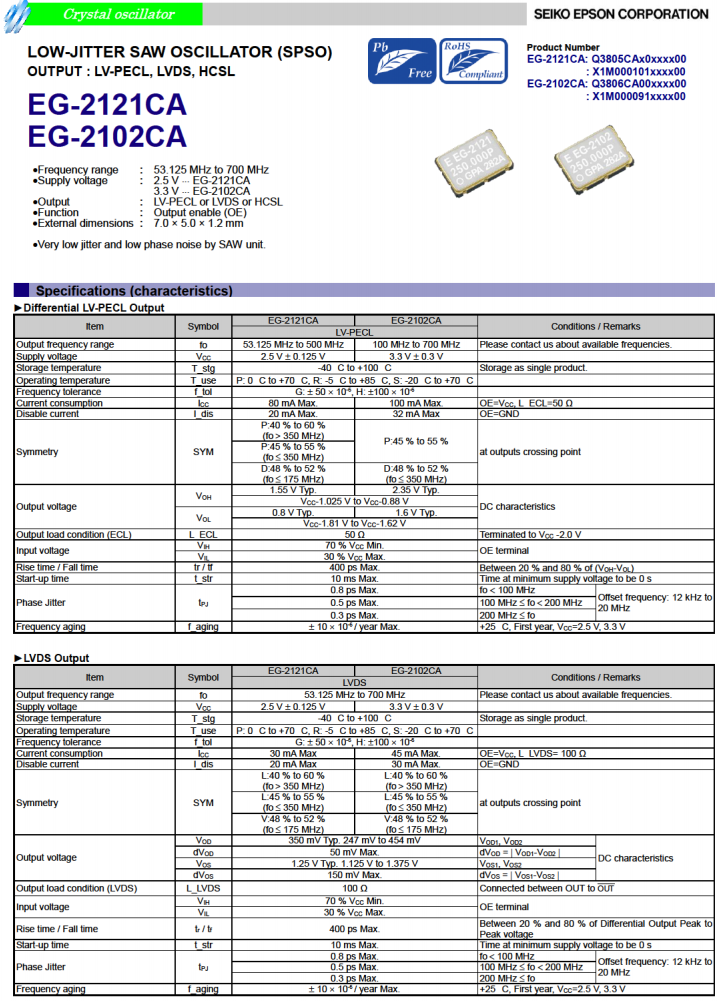

EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振參數表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 160MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 2.5V±0.125V | |
| 儲存溫度 | T_stg | -40℃~+100℃ | 裸存 |
| 工作溫度 | T_use | -20℃~ +70℃ | |
| 頻率公差（標準） | f_tol | ±50 ppm | +25℃,超出標準的規格說明請聯系我們以便獲取相關信息 |
| 電流消耗 | f_tem | 80mA Max | OE=Vcc,L ECL=50Ω |
| 禁用電流 | I_dis | 20mA Max | OE=GND |
| 對稱性（占空比） | SYM | 40%~60% | 在輸出交叉點 |
| 輸出電壓（LV-PECL) | VOH | 1.55V Typ | DC charactenistics |
| VOL | 0.8V Typ | ||
| 輸出負載條件 | L _ECL | 50Ω | Terminated to GND |
| 輸入電壓 | VIH | 70%Vcc Min | OE terminal |
| VIL | 30%Vcc Max | ||
| 上升下降時間 | tr/tf | 400ps Max | Between 20% and 80% of (VOH+VOL) |
| 起始時間 | t str | 10ms Max | Time at minimum supply voltage to be 0 |
| 相位抖動 | tpj | 0.5ps Max | 100MHz≤fo<200MHz |
| 老化 | f_aging | ±10ppm/year | +25℃,第一年，Vcc=2.5V,3.3V |
.gif)

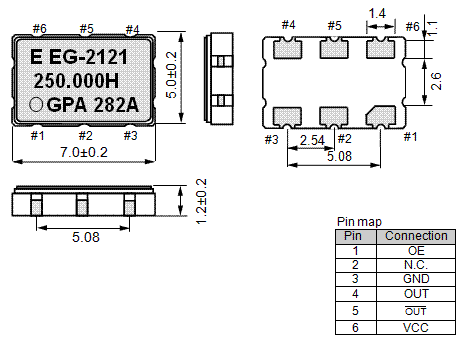

EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振 尺寸圖
.gif)
| 編碼 | 型號 | 頻率 | 尺寸 | 輸出方式 | 電源電壓 |
| X1M0000910002 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0000910003 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0000910004 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0000910005 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0000910006 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0000910007 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0000910008 | EG-2102CA | 156.250000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0000910009 | EG-2102CA | 312.500000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0000910010 | EG-2102CA | 322.265625 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V |
| X1M0001010002 | EG-2121CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 2.375 to 2.625 V |
| X1M0001210001 | EG-2103CA | 212.500000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 3.000 to 3.600 V |
| X1M0002010002 | EG-2102CB | 150.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002010003 | EG-2102CB | 133.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002010004 | EG-2102CB | 156.250000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002010005 | EG-2102CB | 212.500000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002010006 | EG-2102CB | 644.531300 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002010007 | EG-2102CB | 625.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002010008 | EG-2102CB | 100.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002010009 | EG-2102CB | 150.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002010010 | EG-2102CB | 106.250000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V |
| X1M0002110001 | EG-2121CB | 156.250000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.375 to 2.625 V |
| X1M0002110002 | EG-2121CB | 212.500000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.375 to 2.625 V |
| X1M0002110003 | EG-2121CB | 156.250000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.375 to 2.625 V |
| X1M0002110004 | EG-2121CB | 322.265625 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.375 to 2.625 V |
| X1M0002210002 | EG-2102CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210003 | EG-2102CB | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210004 | EG-2102CB | 266.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210005 | EG-2102CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210006 | EG-2102CB | 148.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210007 | EG-2102CB | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210008 | EG-2102CB | 148.351648 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210009 | EG-2102CB | 148.350000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210010 | EG-2102CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002210011 | EG-2102CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002310002 | EG-2121CB | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310003 | EG-2121CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310004 | EG-2121CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310005 | EG-2121CB | 402.832000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310006 | EG-2121CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310007 | EG-2121CB | 133.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310010 | EG-2121CB | 500.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310011 | EG-2121CB | 402.832031 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310013 | EG-2121CB | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310014 | EG-2121CB | 441.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310015 | EG-2121CB | 625.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310016 | EG-2121CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310017 | EG-2121CB | 644.531250 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310018 | EG-2121CB | 322.265625 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310019 | EG-2121CB | 233.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310020 | EG-2121CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002310021 | EG-2121CB | 644.531250 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V |
| X1M0002810003 | EG-2103CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002810004 | EG-2103CB | 212.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
| X1M0002810006 | EG-2103CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V |
